Festoon Cable Systems
Festoon cable systems are used to manage cables and hoses which provide power or necessary gaseous/liquid media to movable machinery. VAHLE Festoon Systems support conductor cables (flat or round) and hoses (hydraulic and pneumatic applications) for delivering power and control to mobile equipment in a safe, efficient and maintenance free method. The cable carriers are well guided inside their tracks and protected against humidity, dust and icing, making them suitable for both indoor and demanding outdoor applications. Particularly, our festoon cables systems work well with port facilities and container handling technologies. VAHLE cable carriers not only deliver power and control to mobile equipment, which has reciprocal motion, but also support large quantities of data cables, including optic fibers travelling independently from the mobile machinery.
Festoon Track Options
Vahle provides a variety of festoon systems and cable trolleys that are most suitable to the application or environment that a cable management system is being used. Below are the different track system configurations provided:

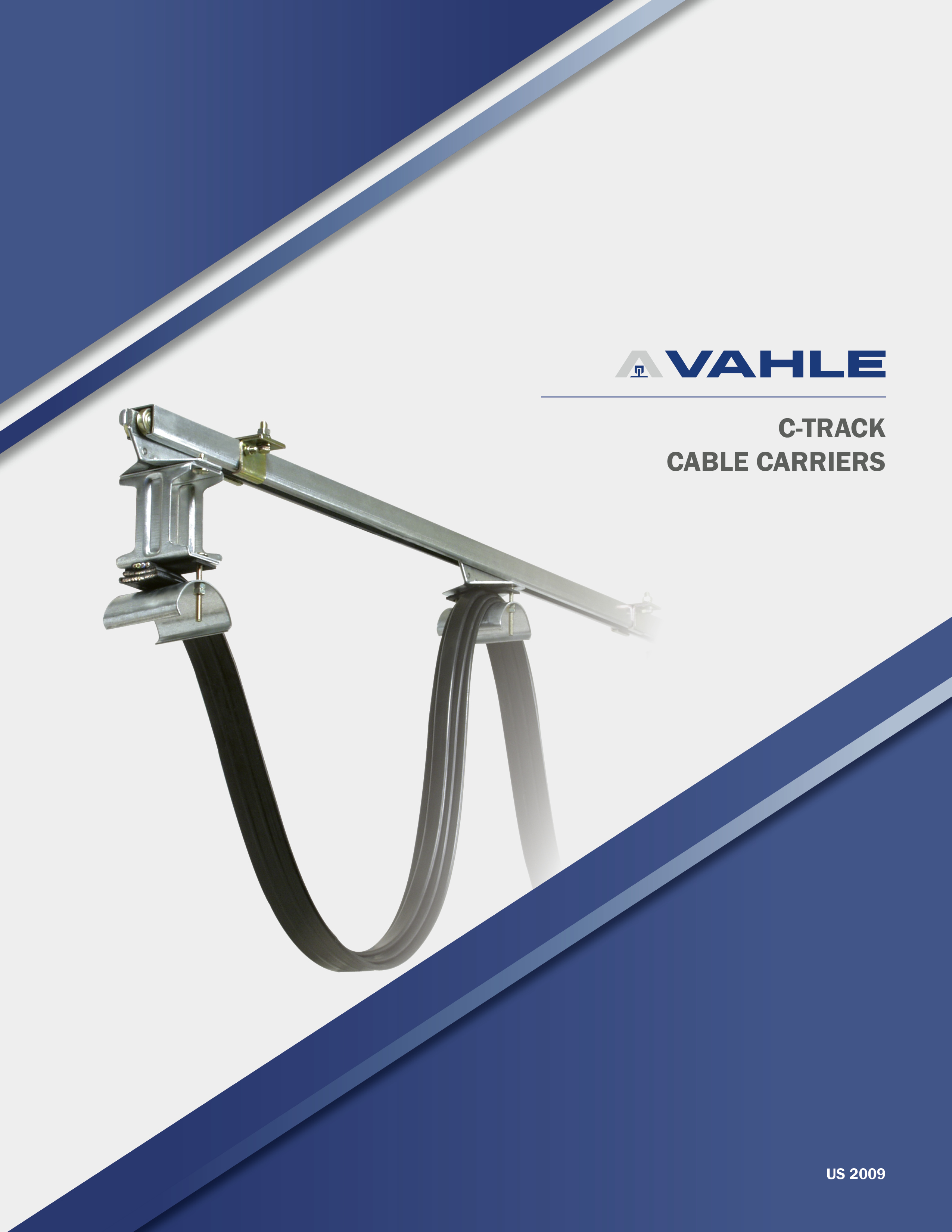

C-Track Systems - Used for standard overhead cranes, gantry cranes, water treatment plants and car wash systems, the C-track system is Vahle’s most economical and dependable system.
I-Beam Systems - Generally used for heavy duty applications such as bulk handling facilities and port container cranes that use flat or round cables.

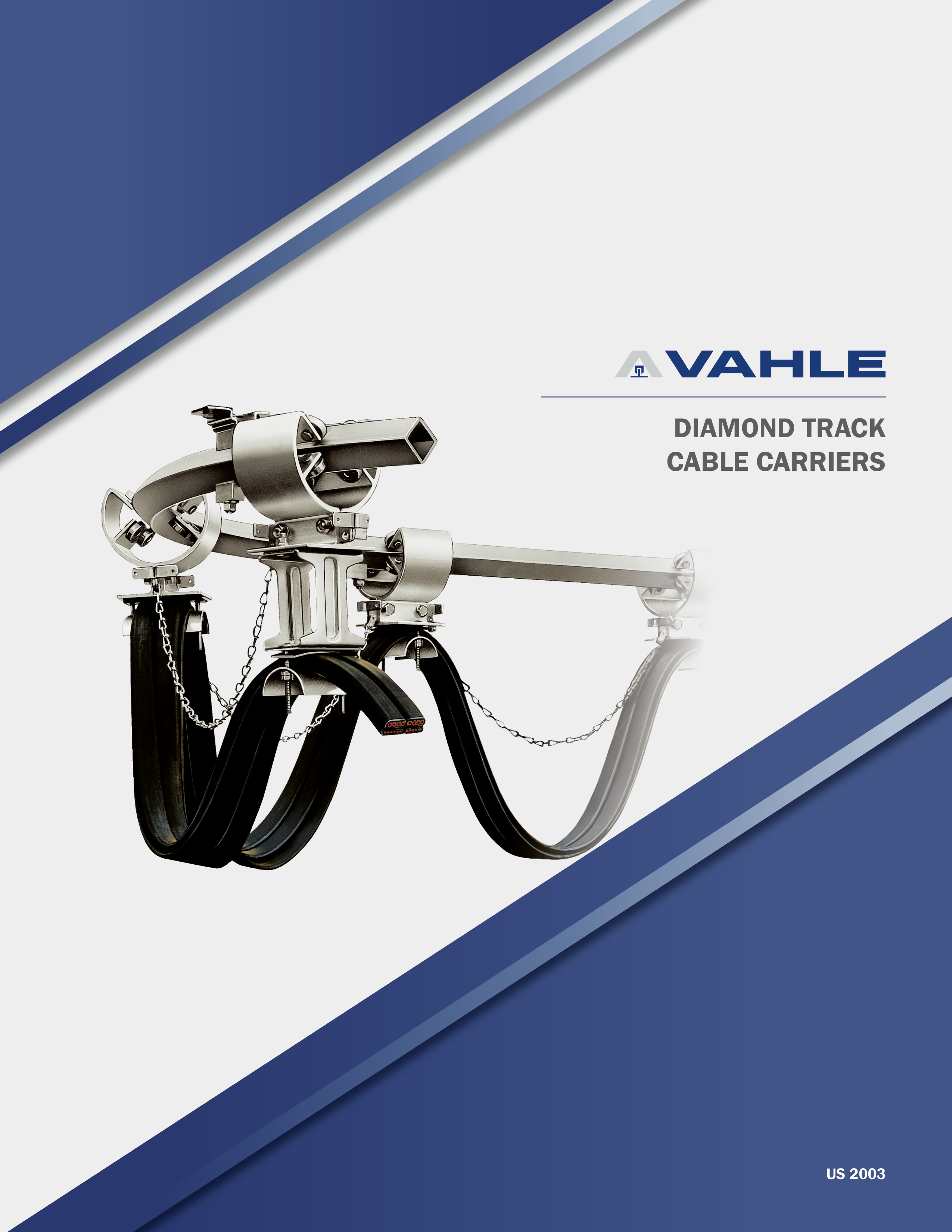

Square/Diamond Track Systems - Diamond track systems are especially well suited for curved systems that are being used in a dusty or dirty environment. The enclosed shape and slope of the tracks prevent an abundant build-up of dirt and can be easily washed down on a regular basis.
K1 PVC Track Systems - This track system is Vahle’s exclusive solution for extremely corrosive environments. The PVC construction and Stainless hardware uses “glider” type cable carriers instead of wheels that can be manufactured with custom curves. These features make it a suitable solution for acid baths, galvanizing plants or sewage treatment facilities. This system can withstand extreme temperature ranges from -20°F - 130°F.
All tracks and cable trolleys can be bent in accordance with the track layout under consideration of the minimum bending radii and the cable loop depths. Naturally, we manufacture our cable festoon systems in accordance with VDE regulations.
In addition to the power supply, cable festoon systems can guide a large number of control lines and optical fiber cables, which optionally can also be moved with control carriers independent of the power loads. We offer a wide range of solutions with accessories in a separate catalog.
We also have a solution for extremely corrosive environments. Our product range includes non-rusting, acid-proof, and seawater-resistant festoon cable systems, as well as accessories for the various cable management systems.
Festoon System Variations
|Track||Type||Dimensions [mm]||Festoon Cable Series||Material of
|S1||30 x 32||WS 1||Plastic||Flat and
|WST 1||Galvanized steel|
|S 2||40 x 40||WS 2||Plastic|
|WST 2||Galvanized steel|
|S 3||50 x 50||WST 3||Galvanized steel||Flat cables|
|K 1||44 x 46||WK 1||Stainless steel||Flat and

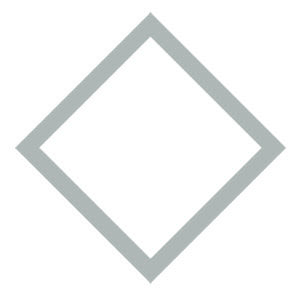

|Square Track||V 3||30 x 30||WV 1||Light metal||Flat cables|
W 25 - W 30
W 35 - W 40
Festoon Cable System with accessories
Cable Carriers for 'C'-Tracks I-Beam Cable Carriers for Flat Cable I-Beam Cable Carriers for Round Cable Cable Carriers for track Systems Flat and Round Cable and Fittings
