SMG - Slotted Microwave Guide

With SMG, VAHLE is able to provide a fully secure, wireless, contactless and interference free data transmission system with available data rates up to 100Mbps. Full duplex communications, multiple interfaces and 3 distinct profiles make SMG a viable solution for any application. The SMG system operates using a specially designed housing that operates to keep the wireless transmission isolated within the housing, free of any outside interference. Additionally, this keeps the SMG from interfering with any additional equipment on site. A wireless signal is sent from the stationary transceiver through the SMG profile to the mobile transceiver via the antenna trolley.

Product Advantages

Multiple profiles depending on application and data rates required

Proven solution with over 40 years of experience

Fully secure from outside interference

Integrates with other VAHLE solutions for complete automation solutions

SMG Profile Types

SMG-T – The latest version of VAHLE’s original SMG solution. Proven, reliable and robust construction have made SMG the industry standard for the last 30 years. Used in a variety of indoor/outdoor industrial applications with low data rate requirements – 10 Mbps or less.

SMG-M – VAHLE SMG has been significantly reduced in size while featuring greatly enhanced capabilities. Designed with EMS and assembly automation in mind, SMG-M (SMG Mini) is a very compact data solution that seamlessly integrates with VAHLE’s conductor bar and positioning solutions. For indoor applications only with a data rate up to 100 Mbps.

SMG-X – VAHLE’s newest SMG solution, SMG-X combines the robust construction of SMG-T with the compact size of SMG-M. Developed specifically for the harsh environments of sea ports, SMG-X is unaffected by extreme environmental conditions while offering up to 100 Mbps of data transfer rate.

ProfileTypeDimensions (w x h)Segments*Data RateSelection Guide
SMG-T 116mm x 103mm Yes 10 Mbps
  • Indoor/Outdoor
  • Multiple Interfaces
  • Economical

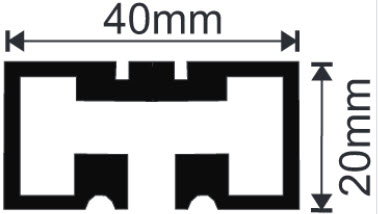

SMG-M 20mm x 40mm Yes Up to 100 Mbps
  • Indoor
  • High Data Rates
  • Integration with Power & Positioning

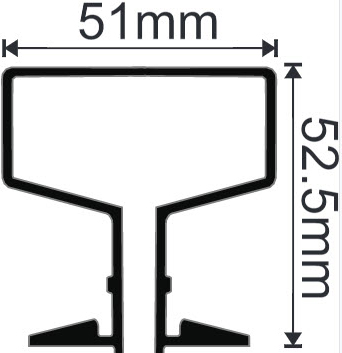

SMG-X 51mm x 52.5mm Yes Up to 100 Mbps
  • Indoor/Outdoor
  • Harsh Environments
  • Ideal for Port Applications
